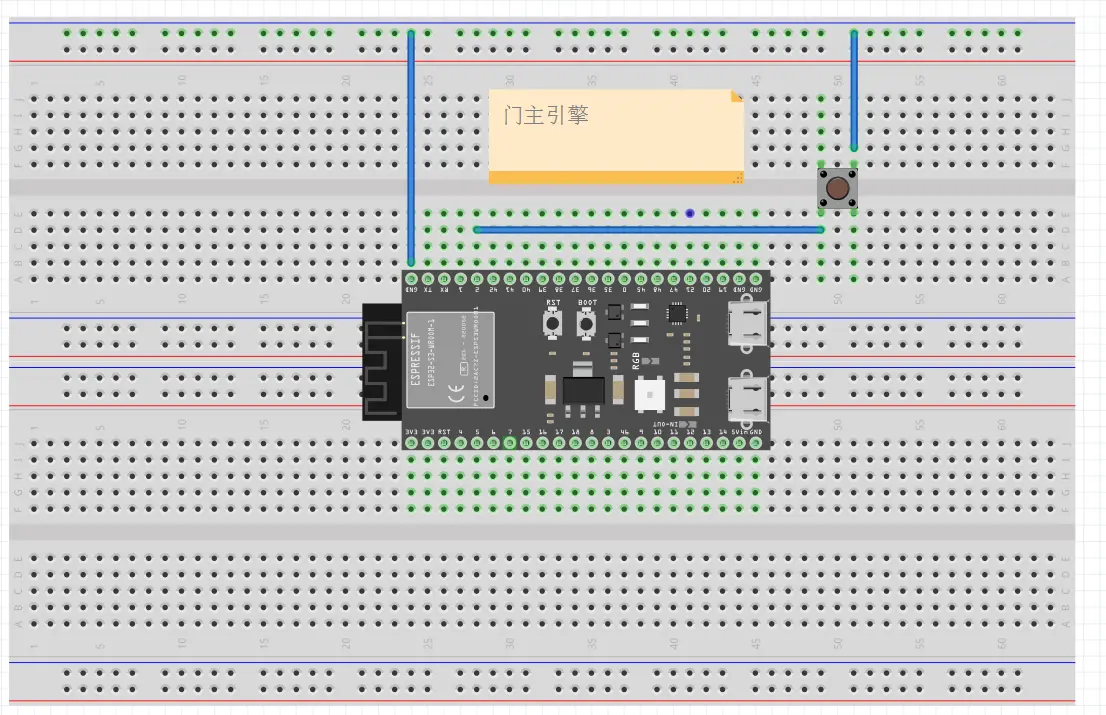

一、如何编写代码实现轻触开关（button）控制 LED 灯点亮？

代码实现：

#include <stdio.h>
#include "driver/gpio.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"

#define button_pin_2 GPIO_NUM_2

void app_main(void)
{
    gpio_set_direction(button_pin_2, GPIO_MODE_INPUT);
    gpio_set_pull_mode(button_pin_2, GPIO_PULLUP_ONLY);

    while(1)
    {
        printf("%d\n", gpio_get_level(button_pin_2) );
        vTaskDelay(pdMS_TO_TICKS(1000) );
    }
}

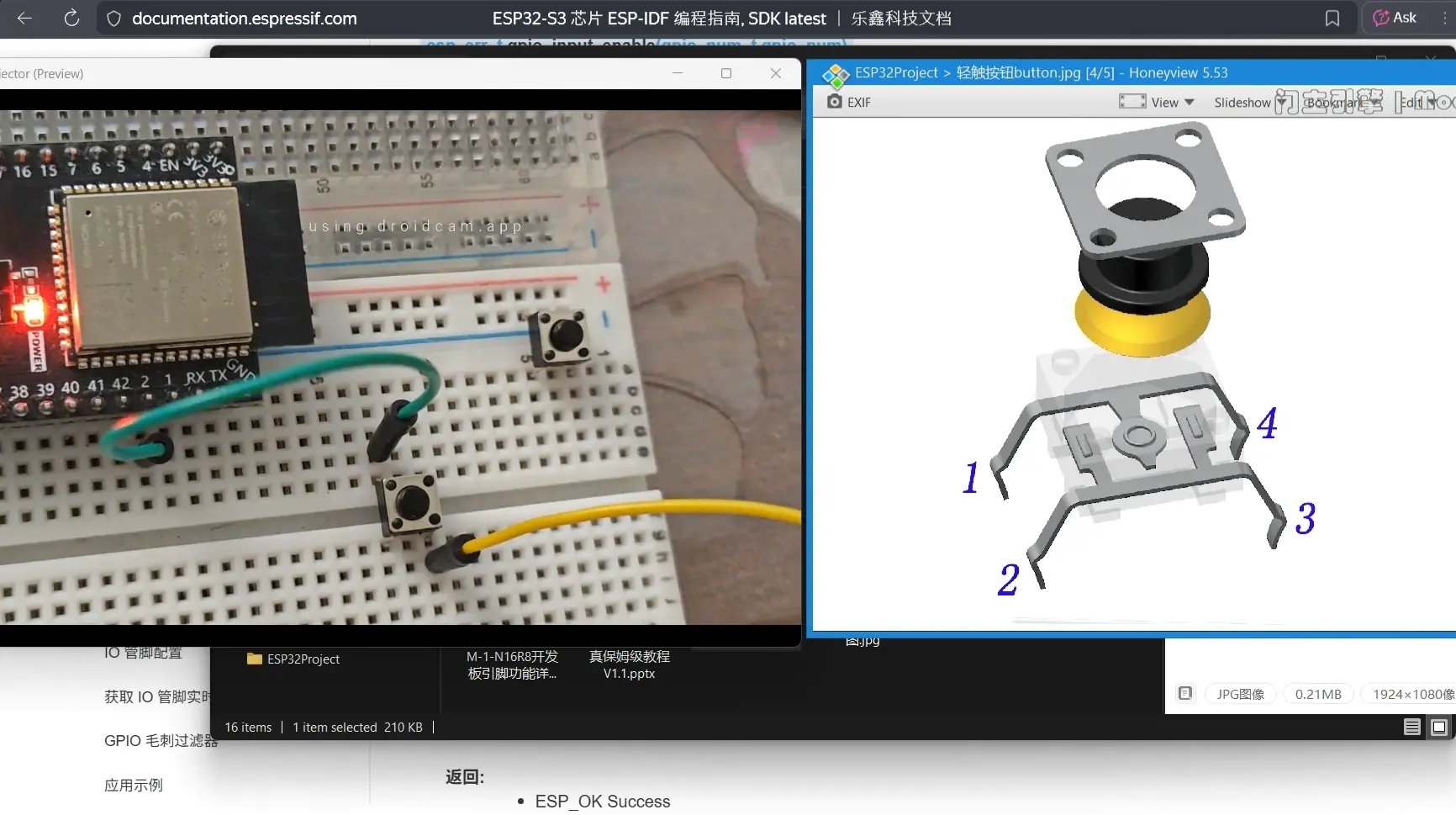

二、什么是Button（轻触开关）？

三、ESP-IDF 的 GPIO 上拉输入有哪些API参考？

esp_err_tgpio_set_direction(gpio_num_t gpio_num, gpio_mode_t mode)

GPIO set direction.

Configure GPIO mode,such as output_only,input_only,output_and_input

备注

This function always overwrite all the current modes that have applied on the IO pin

参数:

1. gpio_num -- Configure GPIO pins number, it should be GPIO number. If you want to set direction of e.g. GPIO16, gpio_num should be GPIO_NUM_16 (16);
2. mode -- GPIO direction

返回:

1. ESP_OK Success
2. ESP_ERR_INVALID_ARG GPIO error

esp_err_tgpio_set_pull_mode(gpio_num_t gpio_num, gpio_pull_mode_t pull)

Configure GPIO internal pull-up/pull-down resistors.

备注

This function always overwrite the current pull-up/pull-down configurations

备注

ESP32: Only pins that support both input & output have integrated pull-up and pull-down resistors. Input-only GPIOs 34-39 do not.

参数:

gpio_num -- GPIO number. If you want to set pull up or down mode for e.g. GPIO16, gpio_num should be GPIO_NUM_16 (16);

pull -- GPIO pull up/down mode.

返回:

ESP_OK Success

ESP_ERR_INVALID_ARG : Parameter error

int gpio_get_level(gpio_num_t gpio_num)

GPIO get input level.

警告

If the pad is not configured for input (or input and output) the returned value is always 0.

参数:

gpio_num -- GPIO number. If you want to get the logic level of e.g. pin GPIO16, gpio_num should be GPIO_NUM_16 (16);

返回:

1. 0 the GPIO input level is 0
2. 1 the GPIO input level is 1
